SolPEG: Final acceptance / Inspection / Technical Advisor / Due Diligence

Acceptance / Inspection

A reliable yield can only be achieved with a high-quality construction. In addition, the built PV system should be in accordance with the planning and yield reports. Therefore it is important that a project is checked by independent experts in terms of quality, safety and standards compliance. Acceptance by the SolPEG GmbH is mainly based on the DIN-VDE-0100 (IEC 60364) with parts 400/500/600/712 and includes the following services:

Preparation: sifting relevant project and planning documents
Comparison of the structural design with the essential features of the yield report and the execution planning. Among other things, tilt, orientation and distance between rows of modules, cabling, wiring.
Plausibility check of the system performance with radiation measurement
Visual inspection of the structural design of the module installation, system installation and wiring, Wiring, inverter generator stations and junction boxes
Measurement of open circuit voltage, short circuit current, voltage-MPP, MPP-power, isolation and characteristic measurement individual strands
Thermographic images (optional)
Functional test of the monitoring system
Rework: execution of a final report, documentation of abnormalities, Optimization instructions, measurement protocols

SolPEG Inspektor Dieko Jacobi

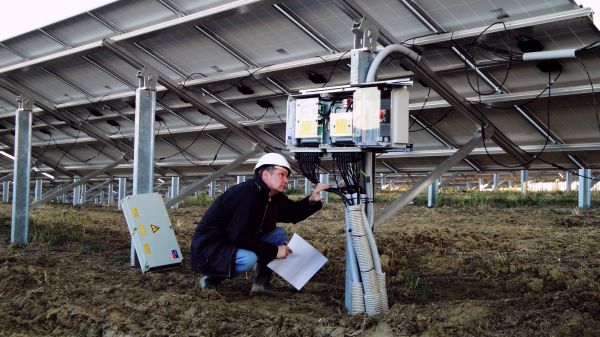

Are the components installed correctly - we check it.

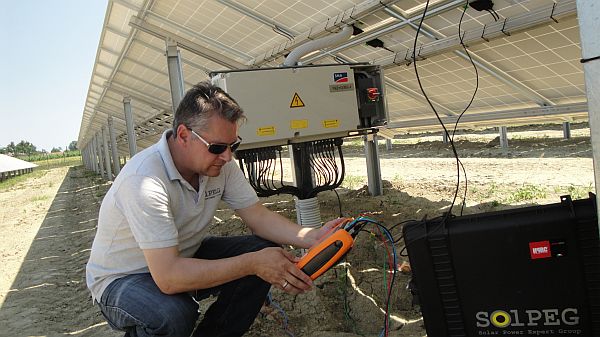

SolPEG Inspector Dieko Jacobi characteristic measurement with IV 400 Professional measurement technology - characteristic measurement with IV 400.

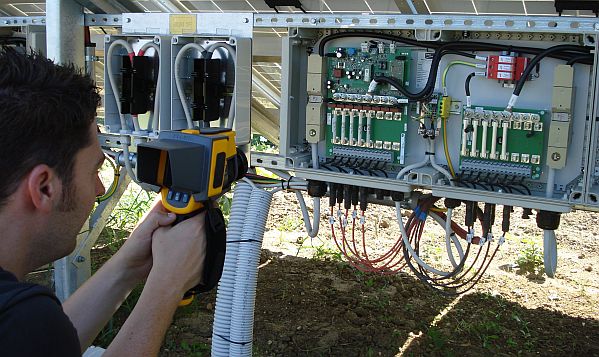

SolPEG themography recordings Fluke Ti27 Professional measurement technology - Themography-recordings with Fluke Ti27.

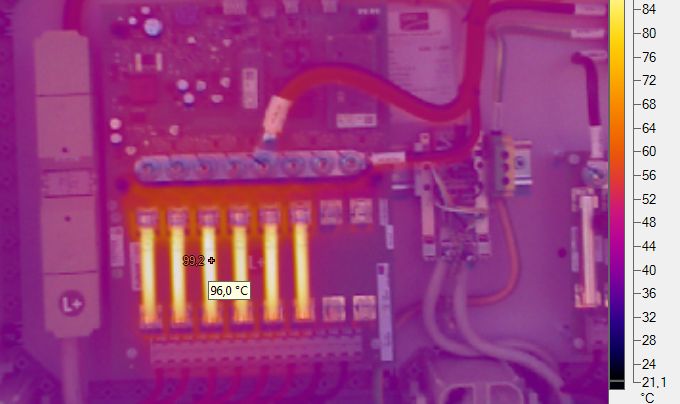

Problem areas - themography recordings show the invisible (undersized fuses).

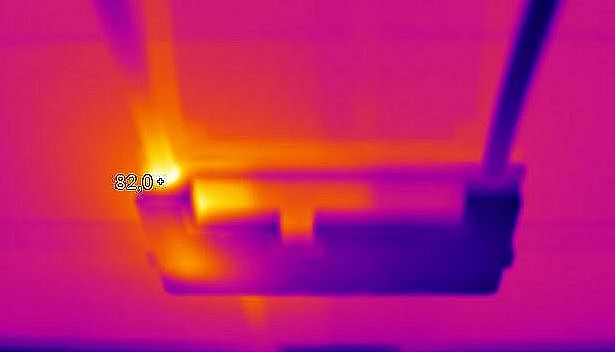

SolPEG Thermographie-Aufnahme Hazards - themography recordings show the invisible (defective junction box).

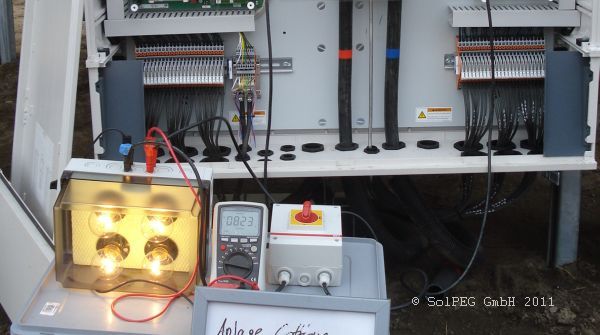

SolPEG Abnahme nach EEG (Lampentest, Glühbirnentest) Commissioning according to EEG - we document the energy production with lightbulbs.
